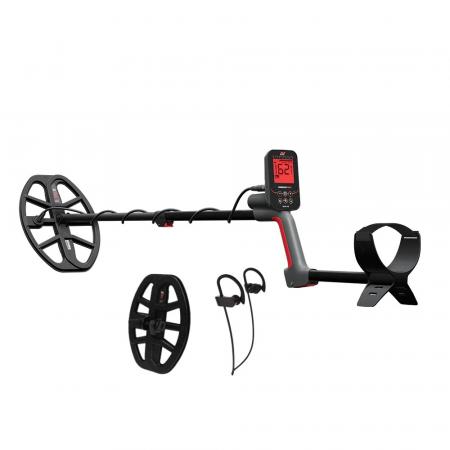

Minelab Vanquish 560 Pro Pack

vanquish 560 pro pack logo

vanquish 560 pro pack

Easy Fully-Automatic Waterproof Hunter

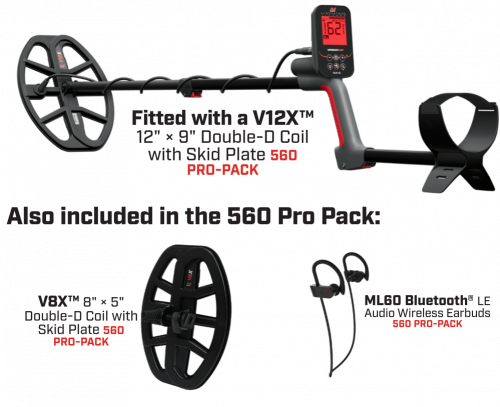

The VANQUISH® 560 PRO-PACK is the ultimate packout for professional-level performance in a simplified, intuitive design. Powered by Minelab's proven Multi-IQ® technology, it scans across multiple frequencies at once for reliable target identification and faster target recovery in changing ground. With 30 discrimination segments, four levels of Iron Bias control and five audio tones, this detector makes it easy to separate trash from treasure. The VANQUISH 560 PRO-PACK includes both the V12X and V8X coils, providing options for wide coverage or precision in tighter ground. Fully waterproof up to 5 m (16 ft) with an IP68 rating, it's made to perform on beaches, lakes and wet terrain. A red LED monochrome display keeps visibility high in low light, while ML60 wireless earbuds with Bluetooth® LE Audio and handgrip vibration deliver rapid, uninterrupted signal feedback. Lightweight, compact and built to detect longer with up

Fully Waterproof

Waterproof image

With an IP68 rating, this detector is built to handle water, dirt and dust with no compromise to performance. Fully submersible up to 5 m (16 ft), it’s engineered for versatility across submerged environments, wet terrain and unpredictable weather. Reliable detection continues uninterrupted in creeks, shorelines, rain-soaked ground and other demanding conditions.

Multi-IQ Technology

Minelab - website - multi iq

Why Multi-IQ? Because more performance shouldn’t mean more effort. Minelab’s proven simultaneous multiple frequency technology gives you the power of multiple detectors working for you at the same time. With Multi-IQ there's no switching frequencies, no second-guessing. Just turn it on and start finding. Coins, gold, jewellery. Parks, fields, beaches. No terrain's off-limits. No treasure left behind. All metals. All soils. All the time.

Search Modes

Search mode picof4

With Park, Field, Beach and a customisable User Profile, your detector is ready for any ground you explore. These modes let you adapt seamlessly to busy sites, wide fields or challenging shorelines, while the User Profile gives you quick access to your own preferred settings. Together, they deliver the versatility to hunt effectively in almost any environment.

Volume and Target Tones

Vanquish 560 pic

10 volume levels for both overall volume and ferrous tone response, while five distinct target tones give greater control over how signals are heard. Volume can be adjusted to suit any environment, while target tones provide sharper audio separation. These features work together to support faster recognition and more intuitive detecting in the field.

Sensitivity and Discrimination

Sensitivity and Discrimination

10 Sensitivity levels and 30 Discrimination Segments provide advanced control over how the detector responds to both ground conditions and metal targets. Adjust sensitivity to detect faint signals or stabilise performance in difficult soils, while discrimination allows for isolation of desired metals. Working in tandem, these features deliver the precision and control needed to maximise every hunt.

Iron Bias

Iron Bias

Four Iron Bias levels give you control over how iron signals are handled, improving clarity in trash-filled ground and helping valuable targets stand out.

Vanquish 560 front features

Vanquish 560 Back features

Vanquish 560 pro pack more featurees

VANQUISH 560 Pro-Pack Tech Specs



Search Modes





  Search Modes

  • Beach
  • Park
  • Field
  • User Profile

Custom User Search Profile

Yes

Pinpoint

Yes



Detection Controls

Operating Frequency

  • Multi-IQ®

Sensitivity

10 Levels

Noise Cancel

Auto



Audio Features

Wireless Audio

Bluetooth LE Audio (LC3 Codec)

Volume Control

10 Levels

Ferrous Volume

10 Levels

Target Tones

5 Tones

Included Headphones

ML60 Wireless Earbuds

Audio Output Options

Built-in Loudspeaker, Wired 3.5 mm (1/8"") Headphones, Bluetooth LE Audio"



Discrimination

Discrimination Segments

30 Segments

Target IDs

Ferrous: -19 - 0, Non-Ferrous: 1 - 99

Depth Indicator

5 Levels

Iron Bias

4 Levels

Physical and Environmental

Length

Extended: 142 cm (56 in)

Weight

1.26 kg (2.6 lbs)

Operating Temperature Range

-10°C - 40°C (+14°F - +104°F)

Storage Temperature Range

-20°C - +70°C (-4°F - +158°F)

Waterproof

IP68 5m (16 ft)

Collapsed

79 cm (31")



Additional Features

Display

Monochrome LCD

Display Backlight

Yes

Keypad Backlight

Yes

Flashlight

Yes

Vibration

Yes

Key Technologies

Multi-IQ, Bluetooth LE Audio (LC3 Codec)

Warranty

3 Years Control Box and Coil

vanquish 60 series standard inclusions

Exciting NEWS . . . . . .

We are imminently awaiting our first shipment of these incredible new Minelab Vanquish 60 series detectors, however please be aware the stock levels initially will be very small until more are shipped into the country in the coming weeks and months!

Are you eager to be one of the first?

Give us a call on 01243 545060 or email us at sales@detecnicks.co.uk and let us know which model you are after so we can put your name and telephone number on our waiting list. We will give you a call you as soon as they arrive!

No deposits required or obligations to buy!

Price: £519.00 (Inc VAT)
Stock: Out of Stock
