Description

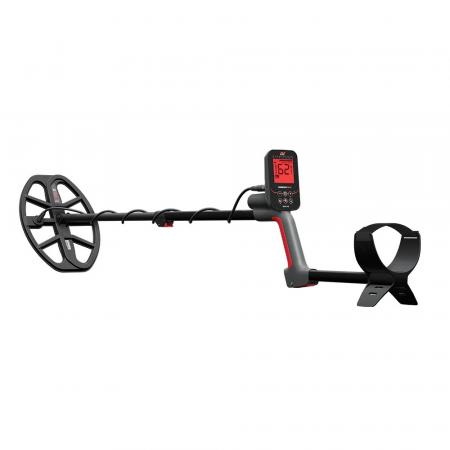

VANQUISH® 560 sets a higher standard in the series, delivering increased power, precision and control. With Minelab's proven Multi-IQ® technology at the core, it detects across multiple frequencies simultaneously for accurate target response and efficient recovery across variable ground. The V12X coil increases ground coverage and sensitivity, while four levels of Iron Bias control, five audio tones and handgrip vibration support isolation of valuable targets. IP68-rated and fully waterproof up to 5 m (16 ft), this lightweight and compact detector is ready for all terrains. VANQUISH 560 features a red LED monochrome display for enhanced visibility in low light, and delivers up to 10 hours of run time on a full charge. Bluetooth® LE Audio enables low-latency wireless performance, providing a serious detecting tool with intuitive handling and sharp response.
Search Modes
| Modes |
Beach, Park, Field |
| User Profile |
Yes |
Detection Controls
| Operation Frequency |
Multi-IQ® |
| Sensitivity |
10 Levels |
| Noise Cancel |
Auto |
Audio Features
| Wireless Audio |
Bluetooth LE Audio (LC3 Codec) |
| Volume Control |
10 Levels |
| Ferrous Volume |
10 Levels |
| Target Tones |
5 Tones |
| Audio Output Options |
Built-in Loudspeaker, Wired 3.5 mm (1/8") Headphones, Bluetooth LE Audio |
Discrimination
| Discrimination Segments |
30 Segments |
| Target IDs |
Ferrous: -19 – 0, Non-Ferrous: 1 – 99 |
| Depth Indicator |
5 Levels |
| Iron Bias |
4 Levels |
Physical & Environmental
| Length (Extended) |
142 cm (56 in) |
| Collapsed |
79 cm (31 in) |
| Weight |
1.26 kg (2.6 lbs) |
| Operating Temperature Range |
-10°C – 40°C (+14°F – +104°F) |
| Storage Temperature Range |
-20°C – +70°C (-4°F – +158°F) |
| Waterproof |
IP68 up to 5 m (16 ft) |
Additional Features
| Display |
Monochrome LCD |
| Display Backlight |
Yes |
| Keypad Backlight |
Yes |
| Flashlight |
Yes |
| Vibration |
Yes |
| Key Technologies |
Multi-IQ, Bluetooth LE Audio (LC3 Codec) |
| Warranty |
3 Years (Control Box and Coil) |
What's in the Box
| Standard Coil |
V12X 12" x 9" Double-D Elliptical |
| Supplied Batteries |
Internal Lithium-Ion Rechargeable |
| Supplied Accessories |
V12X 12" x 9" Double-D Elliptical Coil, ML60 Bluetooth LE Ear Buds |
|
