THE ICON SERIES
Powerful. Simple.
Versatile. Affordable.
Two advanced wireless detectors powered by FMF® technology. Desigened to adapt. Built to perform.
Made in France by XP
More information about both models can be found on the XP Website

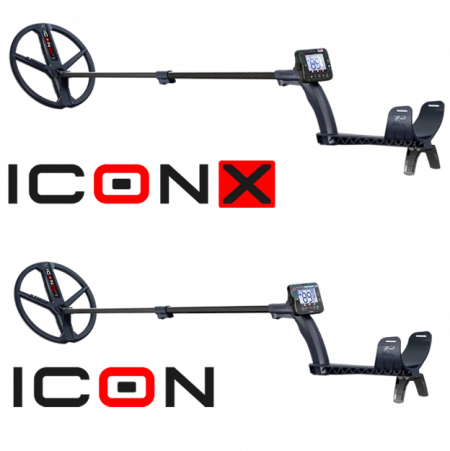

Meet the new XP ICON and ICON-X, two advanced wireless detectors designed to make the XP experience accessible to more users. Powered by FMF® technology, both models deliver precision, versatility, and user-friendly performance. Pick the one that best matches your terrain, your detecting style, and your ambitions.
| ICON |
ICON X |
|
ICON with Remote control, ICON 11" FMF Coil, S-Telescopic Lite Stem, aluminium middle stem and carbon filament lower stem.
ICON with Remote control, ICON 11" FMF Coil, WSA ST Headphones, S-Telescopic Lite Stem, aluminium middle stem and carbon filament lower stem.
|

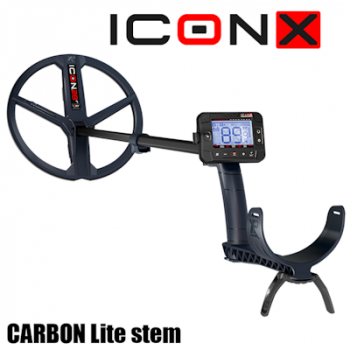

ICON X with Remote control, ICON 11" FMF Coil, S-Telescopic Lite Stem, Carbon Weave middle stem and carbon filament lower stem.
ICON X with Remote control, ICON 11" FMF Coil, WSA ST Headphones, S-Telescopic Lite Stem Carbon Weave middle stem and carbon filament lower stem.
|
DOMINATE THE BEACH
From dry sand to wet saltwater areas, the XP ICON adjusts seamlessly to changing beach conditions. It delivers excellent stability, precise target identification, and strong sensitivity—whatever the tide brings.
PURE DETECTION
Iron-heavy ground won’t hold you back. With intelligent discrimination, adjustable reactivity, and iron volume control, the XP ICON helps you isolate valuable targets even in the most challenging soils.
|
Feature
|
ICON
|
ICON X
|
|
Detection Frequencies
|
Simultaneous Multi-frequencies (40dBµA/m at 10m) – Automatic and manual frequency shift
2 mono frequencies (4 and 14 kHz)
|
Simultaneous Multi-frequencies (40dBµA/m at 10m) – Automatic and manual frequency shift
3 mono frequencies (4, 14 and 28 kHz)
|
|
Sensitivity
|
25 levels
|
25 levels
|
|
Audio Types
|
PWM and SQUARE with Stereo Audio Morphing
3 settings with standard audio curve
|
PWM and SQUARE with Stereo Audio Morphing
6 settings (extra enhanced audio curve)
|
|
Audio Volume
|
10 levels for each output
|
10 levels for each output
|
|
Reactivity
|
5 levels (1/2/3/4/5)
|
7 levels (0/1/2/3/4/5/6)
|
|
Iron Volume
|
11 levels
|
11 levels
|
|
Multi Tones
|
Pitch, 2, 3, 5 tons, Full Tones
|
Pitch, 2, 3, 5 tons, Full Tones
|
|
Ground Effects
|
Grab, Tracking, Mode Standard and Pro
|
Grab, Tracking, Mode Standard and Pro
|
|
Multi-Notch
|
Yes – 28 segments
|
Yes – 28 segments
|
|
Static Mode
|
Yes – Audio and visual
|
Yes – Audio and visual
|
|
Discrimination
|
Audio and visual rejection of ferrous caps – Automatic silencer – All-metal mode
Resolution: 1 point (ferrous zone)
|
Audio and visual rejection of ferrous caps – Automatic silencer – All-metal mode
Resolution: 0.5 point (ferrous zone)
|
|
Programs
|
3 factory + 3 users
|
6 factory + 6 users
|
|
Audio Outputs
|
Wireless headphones + automatic selection (speaker, wired, bone conduction headphones)
|
Wireless headphones + automatic selection (speaker, wired, bone conduction headphones)
|
|
Connectivity
|
Pinpointer MI-6 and Go Terrain app
|
Pinpointer MI-6 and Go Terrain app
|
|
Feature
|
Specification
|
|

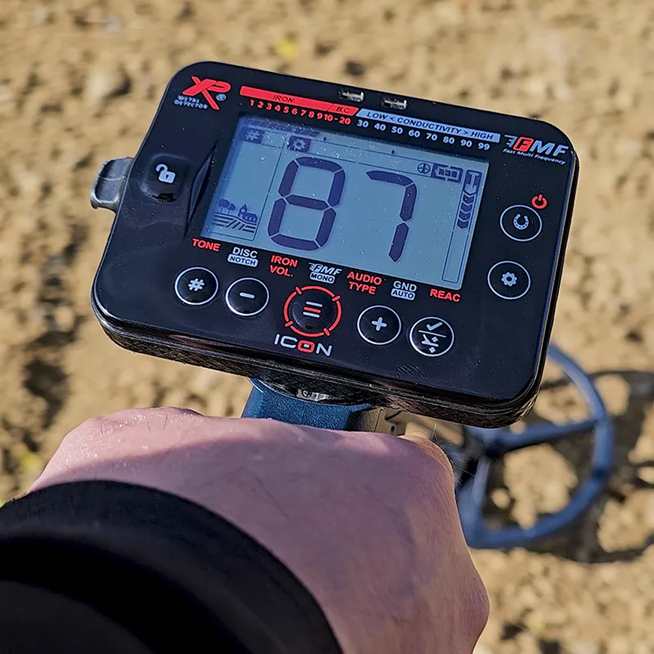

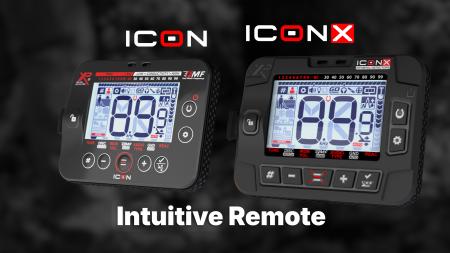

Display
|
Sun-readable LCD with adjustable low-power backlight
|
|
Software Update
|
Yes, via USB / Internet connection
|
|
Optional Wireless Headphones
|
Compatible with the DEUS II FMF ecosystem (WSA ST, WSA ST XL, etc.)
|
|
Optional Wireless Coils
|
Compatible with DEUS II FMF ecosystem coils: D22FMF (22.5 cm), DELLFMFHP (24–13 cm HF2), D28FMF (28 cm), D3428FMF (34–28 cm)
|
|
Stem
|
Fully telescopic S-shaped stem: 58 cm collapsed / 130 cm extended
|
|
Batteries
|
Remote and Headphones: 365 mAh / Coil: 700 mAh
|
|
Battery Life (remote)
|
~11h depending on audio output
|
|
Battery Life (coil)
|
~11h
|
|
Charging Time
|
~3h
|
|
Total Weight
|
~830 g for ICON X (~710 g without remote)
|
|
Stem Weight
|
~260 g (S-Telescopic lite carbon)
|
|
Remote Weight (with batteries)
|
~110 g
|
|
Headphone Weight (with batteries)
|
WSA ST: ~72 g / WSA ST XL: ~250 g
|
|
Coil Weight
|
ICON 28 cm: ~370 g (coil cover included)
|
|
Operating & Charging Temp
|
From 0 to +40°C
|
|
Recommended Storage Temp
|
25°C
|
|
Waterproofing
|
IP68 – 5 m – 30 min (BH-02 bone conduction headphones and waveguide required)
|
|
Warranty
|
5 years parts and labour + 5 years optional
Batteries and accessories: 2 years
|
|
Patents
|
US7940049 B2 – EP1990658 B1 – US 12, 24B, 113 B2 – EP 4377722 and patents pending
|
|
