The Equinox Series
The EQUINOX Series has been designed for the serious coin & treasure enthusiast looking to upgrade to a high performance detector, without the high cost. It's also suitable for the new detectorist, having several pre-set modes for different detecting locations. Simply set the mode according to the location, and go!
The EQUINOX Series was the first metal detector to feature Minelab's revolutionary Multi-IQ simultaneous multi-frequency technology and combines fast recovery speed with depth in any ground type and is compatible with low latency wireless audio.
Features
-
Three Search Modes
- Three preset search modes optimised for varying ground conditions; Park, Field & Beach.
-

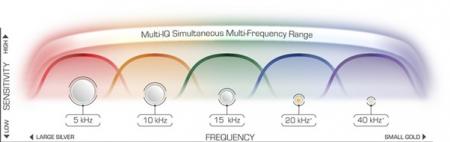

Simultaneous Multi-Frequency
- A few detectors on the market claim to be multi-frequency, but these simply switch different between single frequencies, operating on just one at any given time. The Equinox is the first to offer Multi-IQ, true simultaneous multi-frequency detecting. The best of all worlds with low frequencies picking up large, deep targets and high frequencies sensitive to small objects, all in a single pass of the coil. Plus the range of single frequency settings for more specific needs.
-
6 Custom Search Profiles
- Save your two favorite settings profiles for each of the three search modes.
-

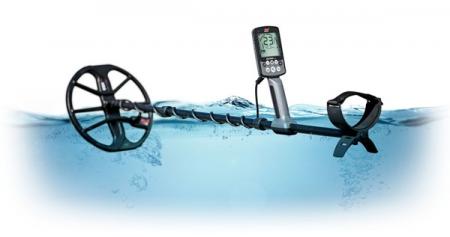

Waterproof Design
- Waterproof for up to 3 meters, the Equinox is ideal for detecting in rivers, lakes and surf, or snorkeling in shallows.
-
Fast & Accurate Target ID
- Super fast recovery speed and accurate target ID to pick out the real targets among the trash.
-
Sleek & Lightweight
- The tough lightweight design will help keep you detecting for longer in all conditions.
-
Wireless Audio Compatible
- Compatible with High-Speed wireless audio via WM 08 or fast aptX™ Low Latency / Bluetooth headphones.
* 20 kHz and 40 kHz are not available as single operating frequencies in EQUINOX 600.
Three Detecting Modes
Park
For trashy areas, such as parks and public places.
Field
For less trashy historical sites with a broad range of target sizes.
Beach
Suitable for wet or dry sand and underwater detecting.
Each search mode had two custom search profiles which can be saved, giving six custom profiles in all.
The Pack Includes:
- The Minelab Equinox 600 Multi-Frequency Metal Detector
- Wired headphones
- USB charging cable with magnetic connector
- Multi-language screen protectors
- Getting Started Guide
|
Audio
|
|
Audio Output
|
Speaker, 3.5mm Jack, Bluetooth, Wi-Stream
|
|
Headphones
|
Minelab Wired Headphones
|
|
Target Tones
|
1, 2, 5, 50
|
|
Threshold Level
|
25
|
|
Threshold Pitch
|
Fixed
|
|
Volume Levels
|
25
|
|
Wireless Capability
|
Wi-Stream, Bluetooth aptX™ Low Latency
|
|
Display
|
|
Back-Light
|
Yes
|
|
Depth Indicator
|
5 Level
|
|
Display Type
|
Mono LCD
|
|
Physical Properties
|
|
Coil Size
|
11 Inch
|
|
Waterproofing
|
3 Meters
|
|
Weight
|
1.34kg
|
|
Power
|
|
Charge Source
|
USB 2.1A, lead supplied
|
|
Expected Battery Life
|
12 Hours
|
|
Power Source
|
Built-in Lithium-ion Rechargeable
|
|
Technology
|
|
Coil Configuration
|
Double D
|
|
Discrimination Segments
|
50
|
|
Ground Balance
|
Auto or Manual
|
|
Iron Bias
|
0 to 3
|
|
Noise Cancel
|
Automatic
|
|
Operating Frequency
|
Multiple
|
|
Recovery Speed
|
1 to 3
|
|
Sensitivity Levels
|
25
|
|
Simultaneous Multi Frequency
|
Multi-IQ
|
|
Software Upgrades
|
Yes
|
|
Stock Coil
|
11 Inch Smart Coil
|
|
Switchable Frequency
|
4, 5, 10 or 15 KHz
|
|
User Features
|
|
Custom Profiles
|
6, Two per detect mode
|
|
Pin-Point Mode
|
Yes
|
|
Preset Search Modes
|
Park, Field, Beach
|
|
Target ID Range
|
-9 to +40
|
|
Warranty
|
3 Years
|
|
